C Series RAW Sewage Pump

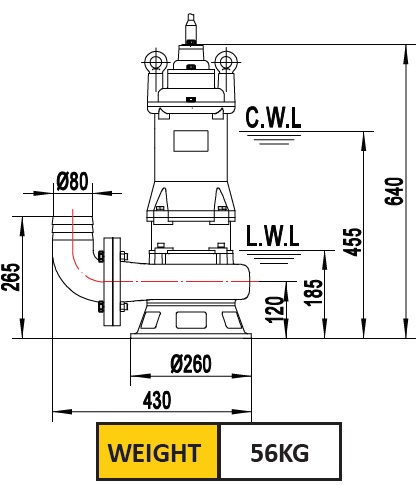

80C23.0-WQAS-42-12-3-T-80mm-Dimensions

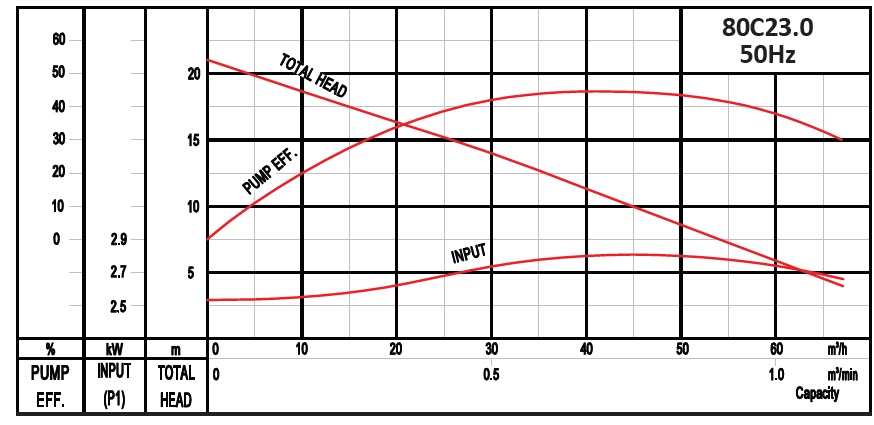

80C23.0 (WQAS 42-12-3 T) 80mm Performance Curve
C Series RAW Sewage Pump

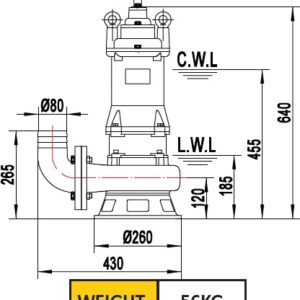

80C23.0-WQAS-42-12-3-T-80mm-Dimensions

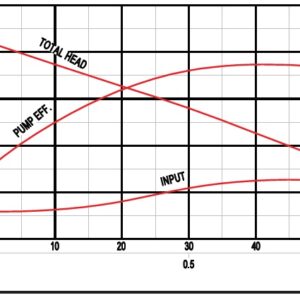

80C23.0 (WQAS 42-12-3 T) 80mm Performance Curve

3KW Raw Sewage Pump 80mm 380V

R22,758.50

The C Range of raw sewage / sludge pumps feature an
adjustable bottom plate to maintain efficiency by maintaining the
preferred clearance in relation to the channel impeller. The inlet
opening is shaped like a star and grabs stringy solids entering
the pump. As the open vane impeller rotates, it effectively cuts all
stringy solids (held by the inlet plate) to manageable sizes, before
allowing access to the pump volute.

SKU: 60040034 Categories: ,

Performance Range:

  1. Maximum Head: 21m
  2. Maximum Flow: 67m³/h
  3. Power: 3.0kW 4HP
  4. Current: 6.5A
  5. Voltage: 380V – 415V
  6. Motor Speed: 2 Pole
  7. Impeller Passage: 30mm
  8. Outlet: 80MM

Operating Conditions:

  1. Liquid temperature: up to 40°C
  2. The density of liquid: 1.3g/cm3
  3. PH: 6 to 10
  4. Protection class: P68, Class B
  5. Maximum immersion depth: 10m
  6. Cable length: 8m

Materials of Construction:

  1. Cast iron pump construction.
  2. Cast iron impeller construction, open type single channel.
  3. Integrated cutter mechanism located on pump inlet.
  4. Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic).
