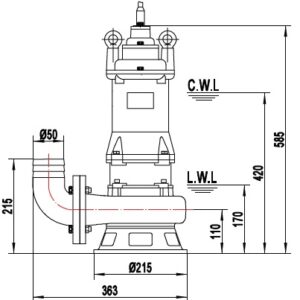

80C22.2 (WQAS 25-10-2.2) 50mm Dimensions

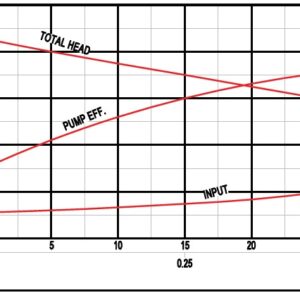

80C22.2-WQAS-25-10-2.2-50mm-performance-Curve 50mm Dimensions
C Series RAW Sewage Pump
80C22.2 (WQAS 25-10-2.2) 50mm Dimensions
80C22.2-WQAS-25-10-2.2-50mm-performance-Curve 50mm Dimensions

2.2KW Raw Sewage Pump 50mm 380V

R15,063.00

The C Range of raw sewage / sludge pumps feature an
adjustable bottom plate to maintain efficiency by maintaining the
preferred clearance in relation to the channel impeller. The inlet
opening is shaped like a star and grabs stringy solids entering
the pump. As the open vane impeller rotates, it effectively cuts all
stringy solids (held by the inlet plate) to manageable sizes, before
allowing access to the pump volute.

SKU: 0040033 Categories: ,

Performance Range:

  1. Maximum Head: 17m
  2. Maximum Flow: 35m³/h
  3. Power: 2.2kW 3HP
  4. Current: 5A
  5. Voltage: 380V – 415V
  6. Motor Speed: 2 Pole
  7. Impeller Passage: 40mm
  8. Outlet: 50MM

Operating Conditions:

  1. Liquid temperature: up to 40°C
  2. The density of liquid: 1.3g/cm3
  3. PH: 6 to 10
  4. Protection class: P68, Class B
  5. Maximum immersion depth: 10m
  6. Cable length: 8m

Materials of Construction:

  1. Cast iron pump construction.
  2. Cast iron impeller construction, open type single channel.
  3. Integrated cutter mechanism located on pump inlet.
  4. Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic).
