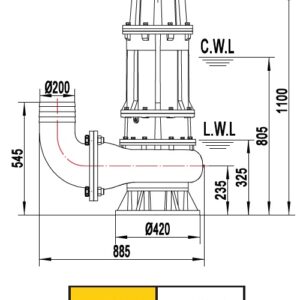

200B422-Dimensions
B-Series-Raw-Sewage-Submersible-Pump
Raw-Sewage-Pump
200B422-Dimensions

22kW Raw Sewage Pump

R137,310.00

High flow heavy duty submersible sewage pumps designed for freestanding as well as guide rail and duck foot installations in the mining, municipal, abattoir, and agricultural industries. These sewage submersible pumps are designed with an inlet cutter plate and a single channel impeller that allows for the pumping of stringy solids

SKU: 60040041 Categories: ,

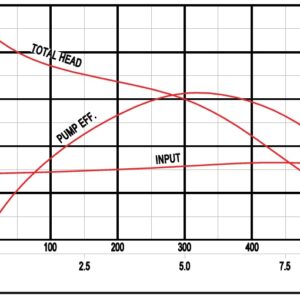

Performance Range:

  1. Max Head: 27m
  2. Max Flow: 550m³/h
  3. Power: 22kW / 30HP
  4. Voltage: 380V
  5. Current: 45A
  6. Motor Speed: 4 Pole
  7. Impeller Passage: 60mm
  8. Outlet: 200mm

Operating Conditions:

  1. Liquid temperature: up to 40°C
  2. The density of liquid: 1.3g/cm3
  3. PH: 6 to 10
  4. Protection class: IP68, Class F
  5. Maximum immersion depth: 20m
  6. Cable length: 8m

Materials of Construction:

  1. Cast iron pump construction.
  2. Cast iron impeller construction, open type single channel.
  3. Integrated cutter mechanism located on pump inlet.
  4. Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic)
