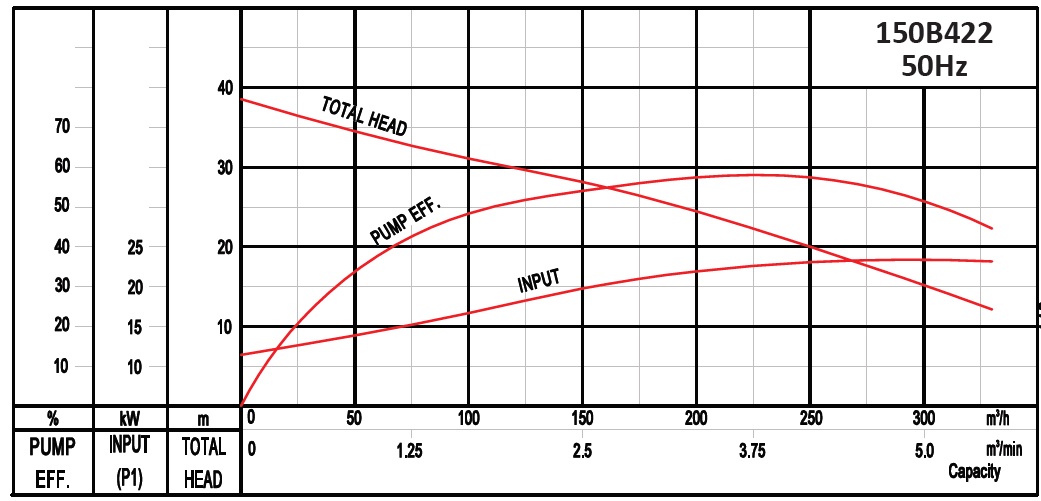

Performance Range:
- Max Head: 39m
- Max Flow: 330m³/h
- Power: 22kW / 30HP
- Voltage: 380V
- Current: 45A
- Motor Speed: 4 Pole
- Impeller Passage: 70mm
- Outlet: 200mm
Operating Conditions:
- Liquid temperature: up to 40°C
- The density of liquid: 1.3g/cm3
- PH: 6 to 10
- Protection class: IP68, Class F
- Maximum immersion depth: 20m
- Cable length: 8m
Materials of Construction:
- Cast iron pump construction.
- Cast iron impeller construction, open type single channel.
- Integrated cutter mechanism located on pump inlet.
- Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic)
