C Series RAW Sewage Pump

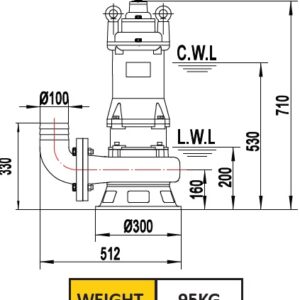

100C27.5(WQAS 85-13-7.5 T) 100mm Dimensions
C Series RAW Sewage Pump
100C27.5(WQAS 85-13-7.5 T) 100mm Dimensions

7.5KW Raw Sewage Pump 100mm 380V

R38,400.00

The C Range of raw sewage / sludge pumps feature an
adjustable bottom plate to maintain efficiency by maintaining the
preferred clearance in relation to the channel impeller. The inlet
opening is shaped like a star and grabs stringy solids entering
the pump. As the open vane impeller rotates, it effectively cuts all
stringy solids (held by the inlet plate) to manageable sizes, before
allowing access to the pump volute.

SKU: 60040037 Categories: ,

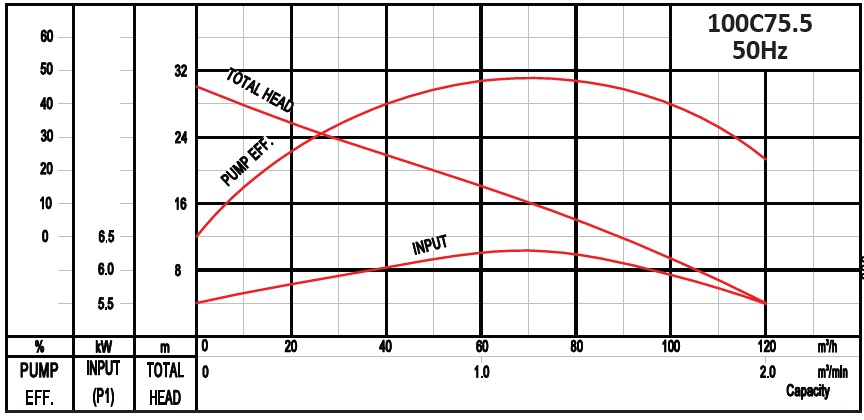

Performance Range:

  1. Maximum Head: 30m
  2. Maximum Flow: 135m³/h
  3. Power: 7.5kW 10HP
  4. Current: 15.7A
  5. Voltage: 380V – 415V
  6. Motor Speed: 2 Pole
  7. Impeller Passage: 50mm
  8. Outlet: 100MM

Operating Conditions:

  1. Liquid temperature: up to 40°C
  2. The density of liquid: 1.3g/cm3
  3. PH: 10
  4. Protection class: P68, Class B
  5. Maximum immersion depth: 10m
  6. Cable length: 8m

Materials of Construction:

  1. Cast iron pump construction.
  2. Cast iron impeller construction, open type single channel.
  3. Integrated cutter mechanism located on pump inlet.
  4. Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic)
