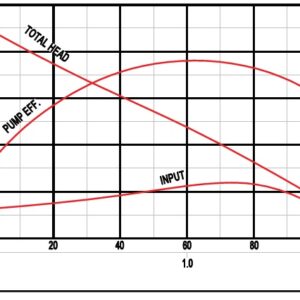

Performance Range:
- Maximum Head: 27m
- Maximum Flow: 107m³/h
- Power: 5.5kW 7.5HP
- Current: 11.7A
- Voltage: 380V – 415V
- Motor Speed: 2 Pole
- Impeller Passage: 350mm
- Outlet: 100MM
Operating Conditions:
- Liquid temperature: up to 40°C
- The density of liquid: 1.3g/cm3
- PH: 7.5
- Protection class: P68, Class B
- Maximum immersion depth: 10m
- Cable length: 8m
Materials of Construction:
- Cast iron pump construction.
- Cast iron impeller construction, open type single channel.
- Integrated cutter mechanism located on pump inlet.
- Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic)
