CP60 Water Pressure Pump
R4,957.00
SINGLE-STAGE BOOSTER PUMP
CP60 Booster Pump
Range of performance
Flow rate: Max 350 L/min (21m³/h)
Head: Max 25m
Power: 1.1kW
Limits of use
Suction lift: Max 7m
Liquid temperature: 40 oC
Ambient temperature: 40 oC
Uses and installations
This range is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials of which the pump is made.
Due to their reliability, simplicity of use, and economy, they are suitable for domestic use and in particular for irrigating and pressure boosting systems.
The pump must be installed under a vented cover and protected against exposure to rain or water spray.
Construction Characteristics
Pump Body: Cast Iron
Impeller: Brass
Motor Shaft: Stainless Steel 304 Mechanical
Seal: Ceramic-graphite
Electric Motor: Three-phase 380V – 50Hz with overload protection
Insulation: Class B
Protection: IP 44
Performance Table:
| Flow (m³/h) | Flow (l/min) | Head (m) |
|---|---|---|
| 0 | 0 | 25 |
| 3 | 50 | 22.8 |
| 6 | 100 | 21.8 |
| 9 | 150 | 20.7 |
| 12 | 200 | 19 |
| 15 | 250 | 16 |
| 18 | 300 | 12.9 |
| 21 | 350 | 4.4 |

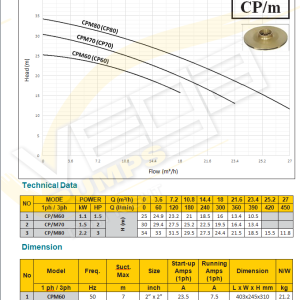

Performance data from the Vega CPM High Flow brochure. Pick a pump whose head at the flow you need is higher than your total head (height to lift the water plus pipe friction).
