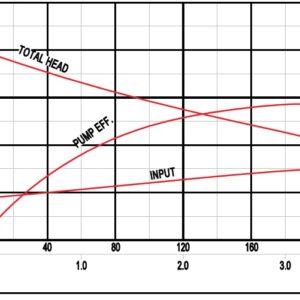

150B411 (150 WQ 130-15-11) Performance Curve
B-Series-Raw-Sewage-Submersible-Pump
Raw-Sewage-Pump
150B411 (150 WQ 130-15-11) Performance Curve

11kW Raw Sewage Pump

R65,650.05

High flow heavy duty submersible sewage pumps designed for freestanding as well as guide rail and duck foot installations in the mining, municipal, abattoir, and agricultural industries. These sewage submersible pumps are designed with an inlet cutter plate and a single channel impeller that allows for the pumping of stringy solids

SKU: 60040038 Categories: ,

Performance Range:

  1. Max Head: 24m
  2. Max Flow: 260m³/h
  3. Power: 11kW / 15HP
  4. Voltage: 380V
  5. Current: 22A
  6. Motor Speed: 4 Pole
  7. Impeller Passage: 65mm
  8. Outlet: 150mm

Operating Conditions:

  1. Liquid temperature: up to 40°C
  2. The density of liquid: 1.3g/cm3
  3. PH: 6 to 10
  4. Protection class: IP68, Class F
  5. Maximum immersion depth: 20m
  6. Cable length: 8m

Materials of Construction:

  1. Cast iron pump construction.
  2. Cast iron impeller construction, open type single channel.
  3. Integrated cutter mechanism located on pump inlet.
  4. Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic)
