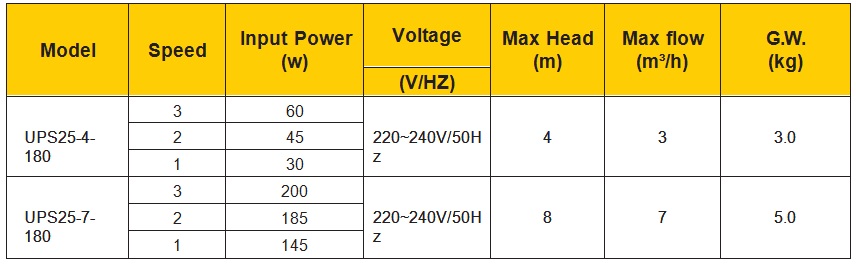

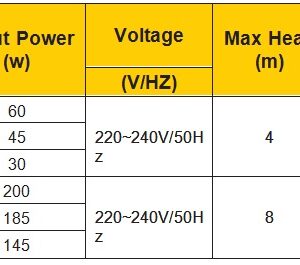

Technical-Data
JCR-Hot-Water-Circulator
Technical-Data

Hot Water Circulator (25MM)

R1,592.00

The UPS Hot Water Circulation pump is designed for the circulation of liquids in heating and air-conditioning systems. Examples of typical applications include hot water service systems, underfloor heating systems, hot water circulation systems, solar hot water circulation systems, etc.

SKU: 35020002 Category:

Operating Conditions:

  1. Max. Flow: 3m³/h
  2. Max. Head: 4m

Product Characteristics:

  1. Voltage: 220V
  2. Watt: 72W

Limits of use:

  1. Liquid temperature:+2°C~+110°C
  2. Maximum ambient temperature: +40°C Maximum system
  3. pressure: 10 bar
  4. Protection Level: IP44
  5. Mains connection: 220V/50Hz
  6. Insulation class: H
  7. Pumped liquid characteristics: Clean liquids, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water.
  8. Installation: The motor shaft must be kept in the horizontal position; therefore the unit must be installed on a vertical pipeline.
  9. pH: 6.5 to 8.5

Threaded unions are included with the purchase of this product.
